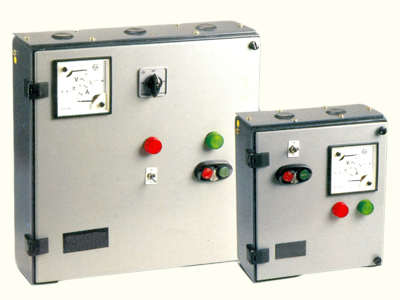

PCP10
|
| Technical Details For PCP 10 DOL Controller |
| Rating |
10Hp, 415V 3ph |
| Contactor |
MU1 |
| Overload relay |
Mu1/Mu2 |
| Coil Voltage |
415V, 360V |
| Pick up voltage |
-50% to +110% Uc |
| Drop off voltage |
25% to 35% Uc |
| Measurement offered |
Ammeter |
| |
Voltmeter |
| Iindicating Lamps |
Supply ON (3ph) |
| |
Pump ON |
| Rated insulation voltage |
690V |
| Rated Operational voltage |
415V AC |
| service Temperature |
-5 degree C to 55 degree C |
| Conformity to standard |
IS 13947 (Part 4/Sec1) |
| Terminal Capacity |
16 sq. Mm with Lug |
| Degree of protection |
IP54 |
| No. of full start |
30 per Hr |
| Back up operation |
Type 2 with HF fuses |
|
| Overall Dimensions |
 |
|
| Features
and Applications of PCP 10/20 Pump Controllers |
| Safety
Features for your Submersible Pump : |
|
Typical
Application : |
- Protection from Single Phasing
- Protection from Overload Conditions
- Protection from Negative Phase sequence
|
|
- Submersible water pumps
- Open well submersible pumps
- Monoblock water pumps
|
| Strength
: |
|
Range
: |
- Rugged MU Contactor with moulded Coil
- Wide band Coil, Operates from -50% to +110% of rated coil voltage (e.g. 360V coil operates from 180V to 410V)
|
|
- PCP10 DOL- upto 10 HP
- PCP20 star Delta- upto 20 HP
|
| For
your Convenience : |
|
|
- Auto Restart (with 30 Sec ON delay)
- Power ON & Pump On indication
- Easy replacement of Spares
- Terminal Block for easy termination
|
|
|
|
| |
PCP 20
|
| Technical Details For PCP 20 DOL Controller |
| Rating |
20Hp, 415V 3ph |
| Contactor |
MU1 |
| Overload relay |
Mu2 |
| Coil Voltage |
415V, 360V |
| Pick up voltage |
-50% to +110% Uc |
| Drop off voltage |
25% to 35% Uc |
| Measurement offered |
Ammeter |
| |
Voltmeter (with selector switch) |
| Indicating Lamps |
Supply ON (3ph) |
| |
Pump ON |
| Rated insulation voltage |
690V |
| Rated Operational voltage |
415V AC |
| service Temperature |
-5 degree C to 55 degree C |
| Conformity to standard |
IS 13947 (Part 4/Sec1) |
| Terminal Capacity |
16 sq. mm with Lug |
| Degree of protection |
IP54 |
| No. of full start |
30 per Hr |
| Back up operation |
Type 2 with HF fuses |
|
| Overall Dimensions |
 |
| |
| Ordering Details for PCP 20 Star Delta Controller |
| Type |
Pump Rating at 415V, 3ph,50 Hz |
With Relay Range A |
Cat No. |
Std. Pkg. (Nos.) |
| HP |
KW |
Coil Voltage 360V |
Coil Voltage 415V |
| PCP 20 Star-Delta |
15 |
11 |
9-14 |
SS95984 COAO |
1 |
| 20 |
15 |
13-21 |
SS95984 COCO |
1 |
| PCP 20H Star-Delta(Heavy duty) |
20 |
15 |
20-32 |
SS95975 COEO |
1 |
| 20 |
15 |
28-42 |
SS95975 COFO |
1 |
|
| Single Phase Panels |
| H.P |
Capacity(Start+Run) |
Relay |
| 0.5 |
80/100 + 36 |
6Amps |
| 0.75 |
120/150 + 50 |
8Amps |
| 1.0 |
150/200 + 60 |
10Amps |
| 1.5 |
200/250 + 72 |
12Amps |
| 2.0 |
200/250 +108 |
16Amps |
|
| |
Terminal Block |
|
| |
 |
Terminal Block 60A-6 way |
| |
Terminal Block |
|
| |
 |
Terminal Block 60A-3 way |
| |

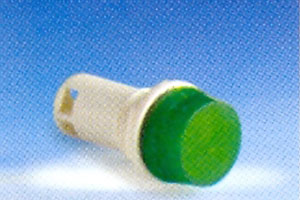

Indicating Lamp Green |
|
| |
 |
Indicating Lamp Green 415V |
| |
Indicating Lamp Red |
|
| |
|
Indicating Lamp Red 415V |
| |
